Modular Horse Shelters

Modular Horse Shelters

Choose from 14 prepackaged kits. By utilizing our component XT corral panel, stall panel, 12' open support brace, shelter package and roof connector, the sky's the limit!

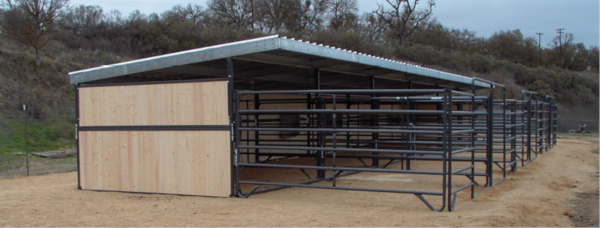

The Horseman's Choice Shelter System has been engineered to be a very strong and versatile addition to your horse operation. These modular horse shelters can be added to and expanded as your needs change. The Horseman's Choice Shelter system is considered a "portable shelter". Because it is not permanent, it can be built in most areas without a building permit and in many areas it is not taxable for the same reason. Check with your local authorities to determine regulations in your area.

All shelter packages are sold with 2" Butterfly clamps (Item No. 44900067. . 2 complete butterflies with bolts & nuts) included. If you assemble a system from component parts, you must order butterfly clamps separately. Each stall corner and each connection between corral panels requires a pair of connectors. XT panels come with chain hookups but butterfly clamps make a more sturdy connection.

Horseman's Choice Stall panels are shipped without wood. Each stall panel comes with a chart that explains how to cut the wood. Behlen Stall panels will accept any 2" planed lumber...2" x 6", 2" x 8", etc.

When properly installed with 29 ga. or heavier sheeting, provides a 40 psf ground snow load, 90# wind load.


Anchor Kits are not standard and must be ordered separately.

IMPORTANT NOTE: The Horseman's Choice Shelter System will work only with Behlen Country 12' XT Corral Panels and Horseman's Choice 12' Stalls. Any substitution with other equipment may not work and will void all warranties. Behlen does not provide roof sheeting, ridge caps, roof screws or wood.

Modular Shelter Systems

Kit Description Item No. Est. Wt./Lbs.
Kit 1 - (1) 12' x 12' corral with shelter framing package and an open front 76078367 680
Kit 2 - (1) 12' x 12' corral with shelter framing package and an entrance panel front 76078357 750
Kit 3 - (1) 12' x 12' HC stall with shelter framing package and an open front 76078387 830
Kit 4 - (1) 12' x 12' HC stall with shelter framing package, solid sides and front with sliding door 76078377 1000
Kit 5 - (2) 12' x 12' corrals side by side with corral panel divider down the center, open fronts and shelter framing package 76078477 1230
Kit 6 - (2) 12' x 12' HC stalls side by side with solid stall panels, corral panel divider down the center, open fronts, basic shelter framing package and add-on shelter package 76078467 1430
Kit 7 - (2) 12' x 12' corrals with entrance panel fronts facing each other, with a 12' wide covered breezeway between them 76078407 1610
Kit 8 - (2) 12' x 12' HC stalls with solid sides facing each other, front with sliding door and covered 12' wide breezeway between them 76078397 2120
Kit 9 - (2) 12' x 12' corrals with entrance panel fronts facing each other, covered 12' wide breezeway between them with 12' x 24' runs behind each pen 76078417 2480
Kit 10 - (4) 12' x 12' corrals with entrance panel fronts facing each other with covered 12' wide breezeways between them 76078437 2900
Kit 11 - (4) 12' x 12' HC stalls with solid sides facing each other, fronts with sliding doors and covered 12' wide breezeways between them 76078427 3815
Kit 12 - (4) 12' x 12' corrals facing each other, with entrance panel fronts, covered 12' wide breezeways between them and 12' x 24' runs behind them 76078457 4270
Kit 13 - (4) 12' x 12' HC stalls with solid sides facing each other, with covered 12' breezeways between them and 12' x 24' runs of corral panels behind each stall 76078447 4990
Kit 14 - (2) 12' x 12' corrals with (4) open support braces and a 12' wide covered breezeway between them 76078487 1430

Components

modular horse shelter
Description Item No. Est. Wt./Lbs.
12' XT Corral Panel 44131127 100
12' XT Entrance Panel 44131037 122
Shelter Framing Package 76110678 350
Add-on Shelter Framing Package 76110708 310
6' Center Connector 76110688 65
12' Open Support Brace 76110697 65
12' Stall Front 76110287 230
12' Solid Stall Front w/Door 76110727 210
12' Stall Panel w/Bars 76110297 165
12' Stall Panel - Solid 76110257 140
Horse Gate Latch 44112207 10
Anchor Kit 76110667 10
2" Butterfly Clamps (pair) 44900067 3
